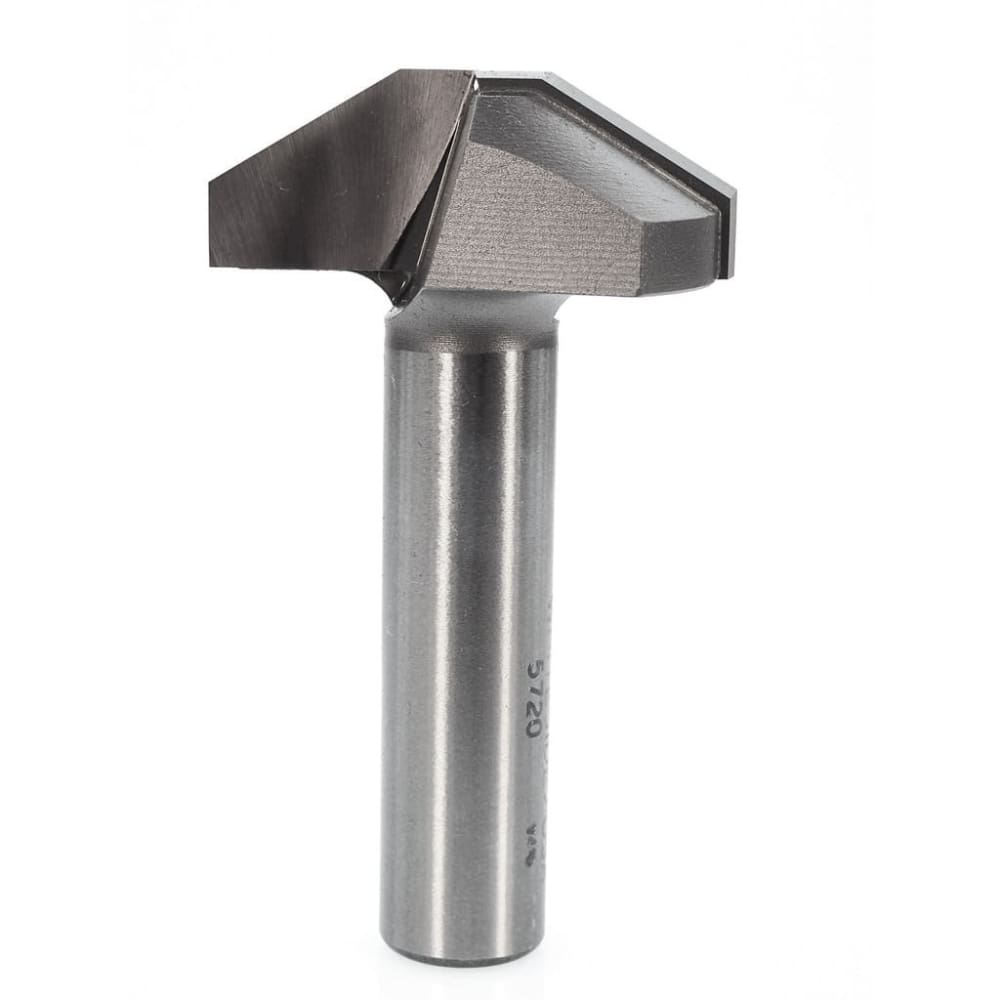

Whiteside 5720 1-1/2″ CD X 2 Wing X 1/2″ SHK Carbide Tipped Straight Panel Profile Router Bit

$85.67

SKU: WH-5720 Category:
Compare

This tooling is designed to give the illusion of raised panel door construction in MDF and solid panel doors. When used individually these bits produce a nice, simple raised panel effect in one pass. Or use one of the “Panel” bits in conjunction with one of the “Stile” bits to create a more authentic raised panel reveal. Many different combinations are possible. Although designed for production routing on solid door machines and CNC routers, the addition of a bearing to the shank will allow the hobbyist to cut his pattern by following an edge guide. The guide can be four strips clamped around the perimeter of the door. The top strip may be curved for an arched pattern. Follow the guide and route both profiles. There’s no need to move the guide for the second cut. A larger bearing on the panel bit takes care of the offset. Use Bearing #B16 for the Stile bits and Bearing #B24 for the Panel bits. Secure the bearings to the shank with a #LC-1/2 Lock Collar. When making the second cut, match the depth setting of the first cut to obtain a pattern with a flat bottom or vary the depth to add an extra distinctive “step” in the bottom of your reveal. Complete the door by adding a door edge pattern around the outside edge.

Manufacturer

Whiteside Machine Company

Cutting Diameter

1-1/2"

Shank Diameter

1/2"

Overall Length

2-1/2"

Number of Wings

2

Cutting Style

Straight Panel Profile

Rotation Direction

Right-Hand

Bit Material

Carbide Tipped

Softwood

Y

Hardwood

Y

MDF

Y
