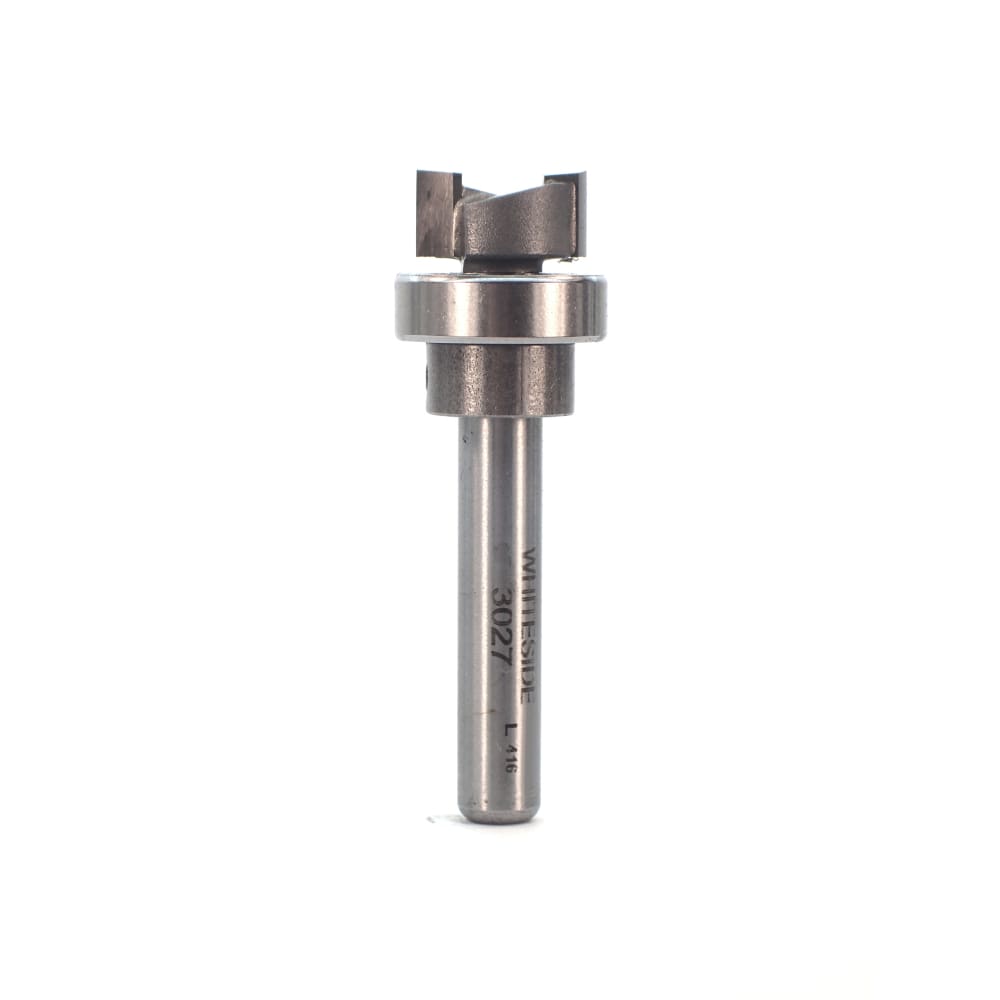

Template bits usually consist of a straight bit with a bearing. Simply align the bearing with your template and cut out your project. This specific bit includes an oversized bearing to leave a lip on your project. Supplied with 5/8″ B6 bearing. Porter-Cable Hinge Butt Mortise Bit.
| Manufacturer | Whiteside Machine Company |
|---|---|
| Cutting Diameter | 1/2" |
| Cutting Length | 1/4" |
| Shank Diameter | 1/4" |
| Overall Length | 1-7/8" |
| Number of Wings | 2 |
| Cutting Style | Template |
| Rotation Direction | Right-Hand |
| Bit Material | Carbide Tipped |
| Softwood | Y |
| Hardwood | Y |
| Plywood | Y |
| MDF | Y |
