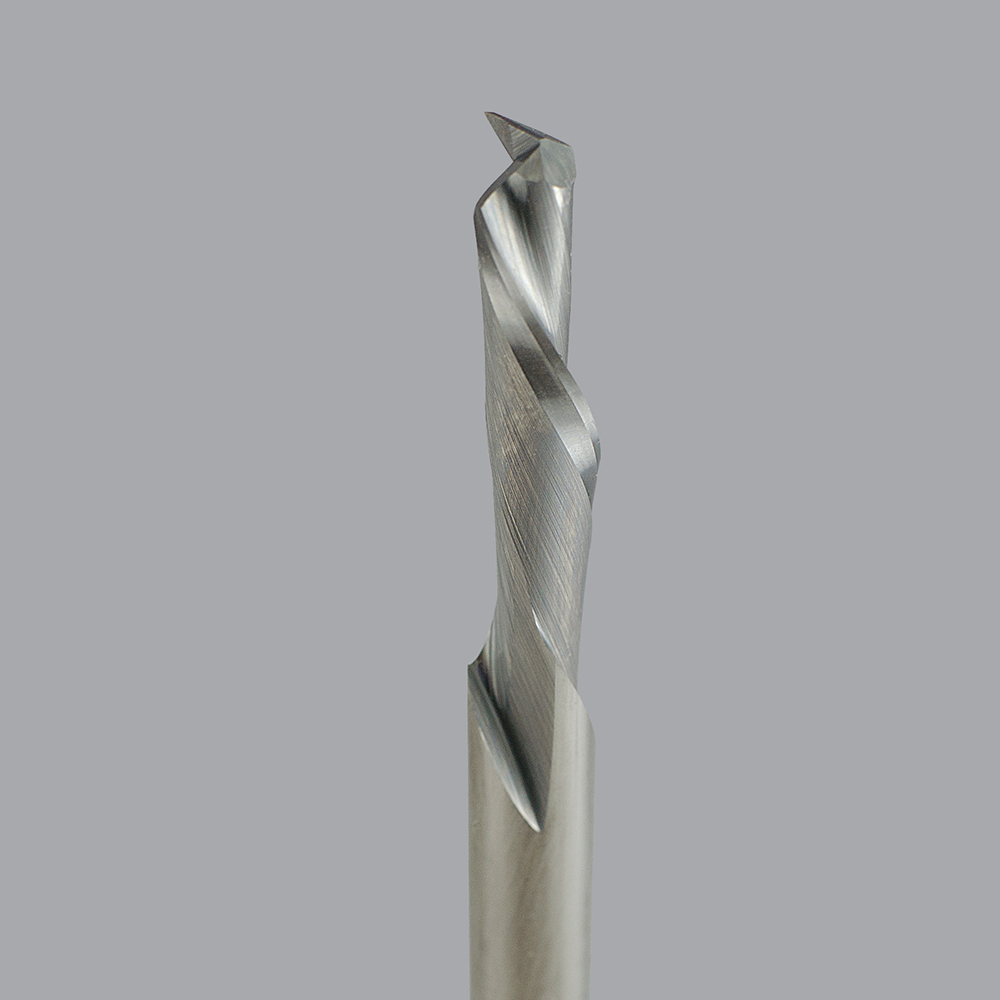

Designed for maximum life when cutting in highwear applications. Unique geometries and carbides improve the wear characteristics of the tool under abrasive applications with superior part finish. This tool is designed with short upcut to allow mortise cut with downcut action.
Cutting Diameter | 1/4" |
---|---|
Manufacturer | Onsrud |
Cutting Length | 7/8" |
Upcut Length | 0.175" |
Shank Diameter | 1/4" |
Overall Length | 2-1/2" |
Number of Flutes | 1 |
Helix Angle | 30° |
Cutting Style | Standard |
Spiral Style | Compression |
Rotation Direction | Right-Hand |
Bit Material | Solid Carbide |
Softwood | Y |
Hardwood | Y |
Plywood | Y |
MDF | Y |
Laminated Wood | Y |
